• 282079-2
1 1

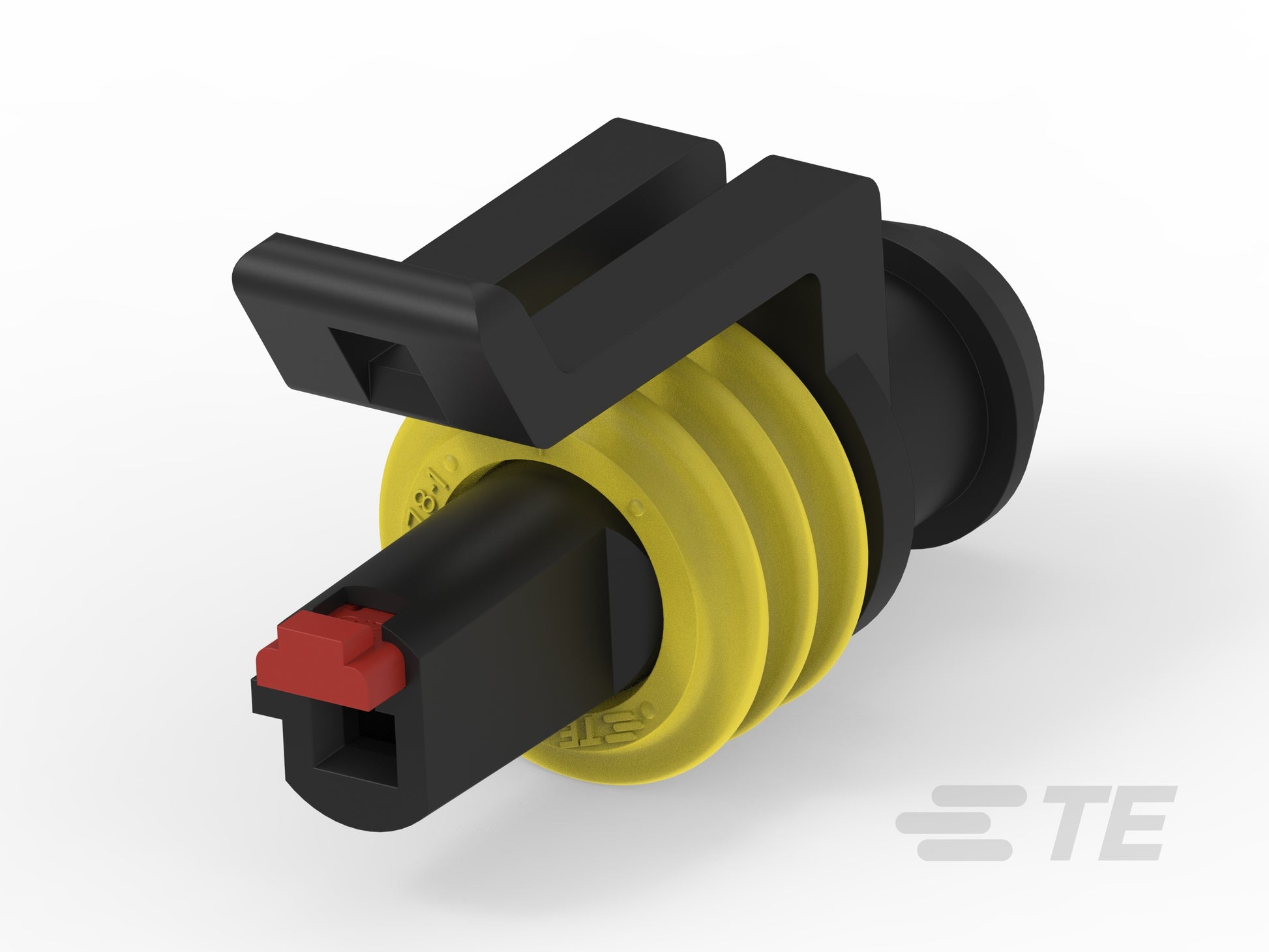

Superseal 1.5 1-way plug — female sockets (black)

Superseal 1.5 1-way plug — female sockets (black)

€1,15 EUR
€1,15 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

Specifications

SeriesSuperseal 1.5
ManufacturerTE Connectivity (AMP)
Pins1
Genderfemale
SealingSealed
Max current14.0 A
Wire size (conductor)0.5–1.5 mm² (20–16 AWG)
Terminationcrimp
Colourblack
Temp range-40 to +125 °C
Manufacturer no.282079-2
SKUCON-SS15-1F
Mates with
Superseal 1.5 1-way cap — male tabs (black)
Terminals that fit
Superseal 1.5 receptacle terminal — female, 0.35–1.5 mm² (2 sizes, tin)
Complete this connector
Superseal 1.5 wire seal — green, 1.2–1.6 mm (~0.5 mm²)Superseal 1.5 wire seal — yellow, 1.7–2.4 mm (0.75–1.0 mm²)Superseal 1.5 wire seal — red, 2.5–3.3 mm (1.5–2.5 mm²)
